The Raise/Lower/Tilt (RLT) operator is available for door styles including sliding patio doors, French doors, or swinging glass entry doors.

• Custom 1" Sizes: 8"–80" wide x 14"–80" tall (in 1/16" increments)
• Custom 7/8" Sizes: 8"–48" wide x 18"–80" tall (in 1/16" increments)
• XL 1" Sizes: 9"– 63" wide x 46"– 90" tall (in 1/16" increments)
• 6 colors (white, tan, sand, silver moon, slate gray, espresso)
• Tempered or annealed glass
• Clear glass, 8 Low-E (single or dual) options
• EasyGlide or SlimLine operator design* (raise/lower/tilt functions)
• Minimum order quantity = 1
• 10-year full warranty
• Child & pet-friendly: no exposed cords
• No dusting, maintenance-free: blinds are enclosed between glass
• Assembled in the USA

Discover more about Blinds + Glass
View more product examples in the Inspiration Gallery.

ODL blinds and components are color coordinated.

ODL Blinds + Glass are virtually maintenance-free. View how-to videos for care and maintenance or troubleshooting tips.

Need to download technical drawings, specifications, or literature? Visit the resource library.

Ready to order? Find your local door dealer and ask about door lead times.

Blind Options

The Raise/Lower/Tilt (RLT) operator is available for door styles including sliding patio doors, French doors, or swinging glass entry doors.

• Custom 1" Sizes: 8"–80" wide x 14"–80" tall (in 1/16" increments)
• Custom 7/8" Sizes: 8"–48" wide x 18"–80" tall (in 1/16" increments)
• XL 1" Sizes: 9"– 63" wide x 46"– 90" tall (in 1/16" increments)
• 6 colors (white, tan, sand, silver moon, slate gray, espresso)
• Tempered or annealed glass
• Clear glass, 8 Low-E (single or dual) options
• EasyGlide or SlimLine operator design* (raise/lower/tilt functions)
• Minimum order quantity = 1
• 10-year full warranty
• Child & pet-friendly: no exposed cords
• No dusting, maintenance-free: blinds are enclosed between glass
• Assembled in the USA

*1" IG's only. Available in white.

Specifications

	Blinds + Glass Classic	Blinds +  Glass Custom
IG panel sizes	14"–36" wide* 42"–80" tall* (*in 1/16" increments) 1" thick	8"–80" wide* 14"–80" tall* (*in 1/16" increments) 1" thick 8" - 48" wide*  18" - 80" tall* (*in 1/16" increments)  7/8" thick
Sq ft max	1": 17 sq ft	1": 17 sq ft (no more than 36" in one direction) 7/8": 18 sq ft (no more than 36" in one direction)
Glass types	1" Tempered: Up to 17 sq ft (dual operator)	1" Tempered: Up to 17 sq ft (dual operator above 12 sq ft) 1" Annealed: Up to 15 sq ft (single operator) 7/8" Tempered: Up to 18 sq ft (dual operator 48" and above) 7/8" Annealed: Up to 15 sq ft (single operator 48" and below)
Low-E options	1" Single: 270, 272, 340, 366 1" Dual: I89/270, I89/272, I89/340, I89/366	1" and 7/8" Single: 270, 272, 340, 366 1" and 7/8" Dual: I89/270, I89/272, I89/340, I89/366
NEAT options (Tempered Glass Only)	—	1" and 7/8" Single: 270, 366 1" and 7/8" Dual: I89/270, I89/366 (Tempered glass only)
Operator options	1" Classic design: 0.667" thick 1" Low-profile design: 0.438" thick	1" and 7/8" EasyGlide design: 0.539" thick 1" SlimLine design: 0.323" thick 1" High or low operator position* (*above 30" in height, single operator only)
Operator handing	1" Left- or right-hand operator	1" and 7/8" Left- or right-hand operator

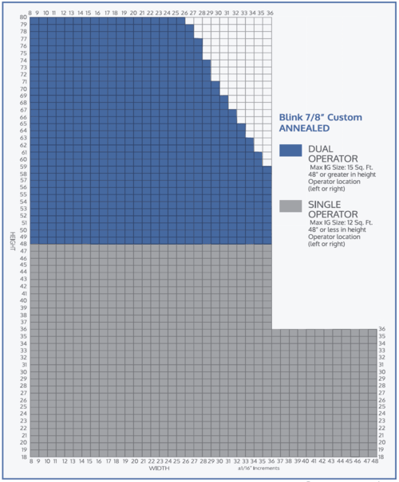

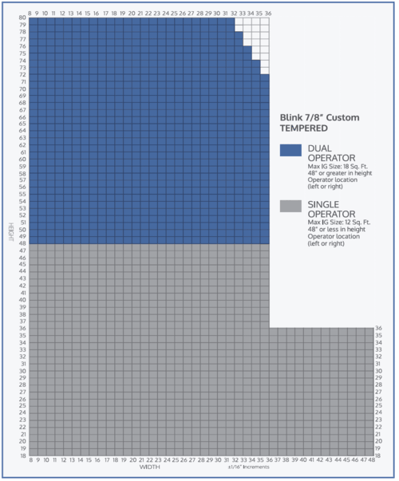

Size Charts	1" Tempered glass	1" Tempered glass 1" Annealed glass 7/8" Tempered glass 7/8" Annealed glass

Technical Information

Read more about:
Product Performance
Product Codes
Energy Efficiency & Thermal Performance
Safety Certifications
3-Part Specifications

Download design specifications:
Blinds + Glass Classic—Raise/Lower/Tilt
(1 MB) Adobe PDF
Blinds + Glass Custom—Raise/Lower/Tilt
(1.1 MB) Adobe PDF
Blinds + Glass 7/8" Custom
(2 MB) Adobe PDF
